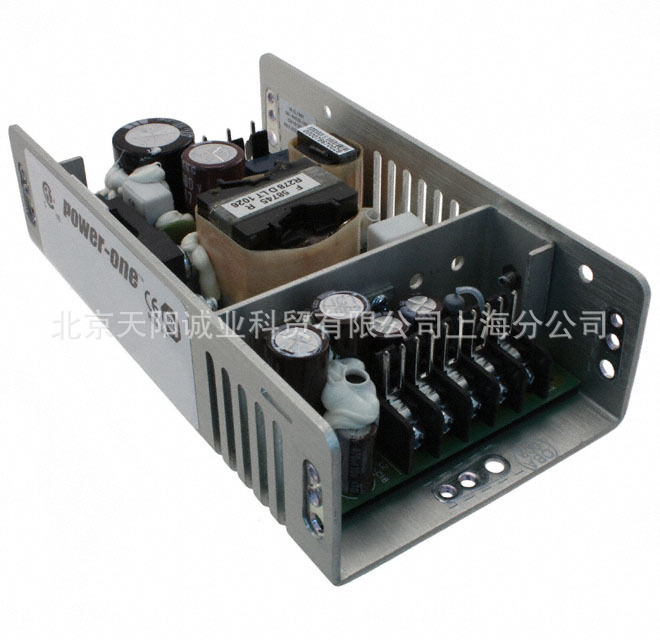

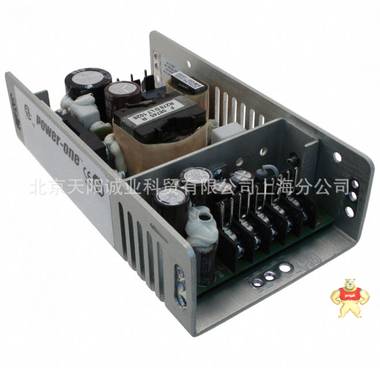

易賣工控網(news.tpt0.cn)提供”MAP40-3100 Power-One 電源線性開關 熱賣變壓器”,產品詳情:品牌/廠家:其他品牌、型號:MAP40-3100Power-One、成色:全新、貨期:期貨 7天內發貨、保修:365天,更多產品詳情就上易賣工控網。
DatasheetsProduct PhotosStandard PackageCategoryFamilySeriesTypeNumber of OutputsVoltage - OutputVoltage - InputOutput - 1 @ Current (Max)Output - 2 @ Current (Max)Output - 3 @ Current (Max)Output - 4 @ Current (Max)Power (Watts)Power Supply TypeApplicationsMounting TypeSize / DimensionOperating TemperatureEfficiencyPower (Watts) - MaxApprovals
MAP30(40,42) AC-DC Series |
MAP40 SERIES |
36 |
Power Supplies - External/Internal (Off-Board) |
AC DC Converters |
MAP40 |
Standard Product |
3 |
5V, ±12V |
85 ~ 264VAC |
5 VDC @ 3A |
12 VDC @ 2A |
-12 VDC @ 300mA |
- |
40W |
Switching (Open Frame) |
Commercial |
Chassis Mount |
5.00" L x 3.00" W x 1.25" H (127.0mm x 76.2mm x 31.8mm) |
0°C ~ 50°C |
70% |
40W |
CE, CSA, EN, UL |
