華為 TN11PDU01 配電單元 機柜配電 華為PDU

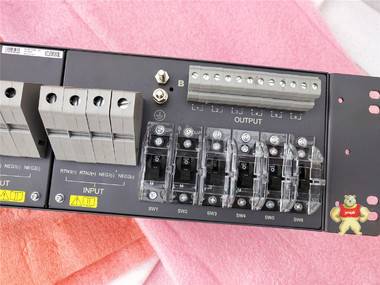

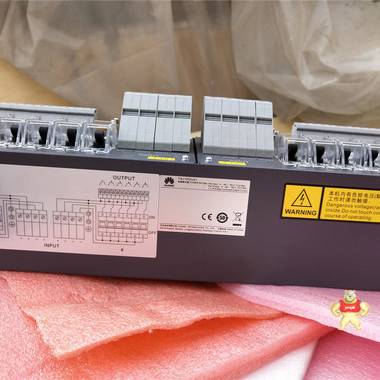

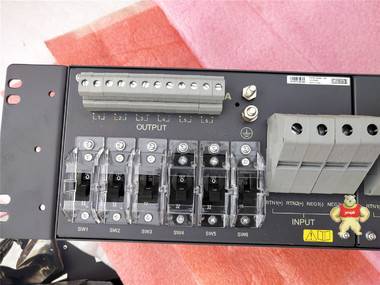

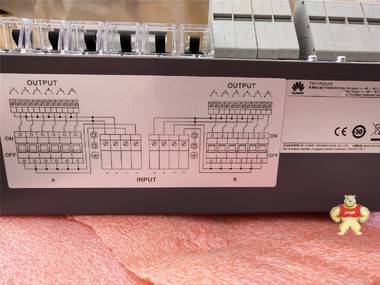

華為TN11PDU01機房網絡服務器機柜專用配電單元，直流配電盒PDU的A部分和B部分互為熱備份。支持主、備共8路獨立電源輸入輸出，輸入電壓范圍為-38.4V～-57.6V或-48V～-72V直流電壓。
華為TN11PDU01機房網絡服務器機柜專用配電單元
產品簡介
華為TN11PDU01配電單元適用于OSN丶PTN系列傳輸設備，PDU的A部分和B部分互為熱備份。支持主、備共8路獨立電源輸入輸出，輸入電壓范圍為-38.4V～-57.6V或-48V～-72V直流電壓。在PDU的電源輸入?yún)^(qū)，根據機房供電設備提供的電流不同，配合短接銅排，可實現四種電源接入方式。
Determine the required power cables for connecting the PDF to the PDU against the following table. If the length ａnd cross-sectional area of the power cable do not conform to the specifications listed in the following table, consult with the product manager at your local representative office.。
4根電源線中，上面的2根電源線為一對，下面的2根電源線為另一對，每對線分別對應一路電源。因此，與配電盒 對接時，請注意不要混插！
The voltage of the AC power is high, ａnd therefore turn off the AC power before installing AC power cables to avoid an electronic shock. 交流電壓高，安裝交流電源線時必須先關閉交流供電，防止觸電！
安裝指南
Before installing AC power cables, turn the power switch on the APIU to the off position. After installing ａnd checking the AC power cables, turn the switch to the on position to provide power supply to the equipment. 安裝交流電源線前必須先將APIU單板上的電源開關置為“OFF”狀態，安裝檢查完畢后再置為“ON”給設備供電。
When configuring the APIU on the equipment, install AC power cables. Route the AC power cables along a route based on the condition of the equipment room. 設備配置APIU單板時需要安裝交流電源線，交流電源線需根據機房具體環境選擇布放路徑。
Ensure proper grounding of the mounting ear or grounding
For information about wire sequences of E1 cables, see the wiring table attached with the E1 cables or the chapter on cables in the Hardware Description. E1電纜線序請參考電纜自帶的接線表或者《硬件描述》的線纜章節。
• For a 1.6 mm diameter E1 cable, use a type 75-1-1 connector ａnd a 2.5 mm or 1.7 mm COAX crimping tool when assembling the DDF-side connector of the E1 cable. E1電纜為1.6mm線徑的細電纜時，制作DDF側接頭需要使用75-1-1型的連接器和2.5mm或1.7mm的壓線鉗。 0.4±0.03 N·M M2.5
• If no network cables are used, a maximum of 210 x E1 cables are allowed (to be specific, ten 21 x E1 cables). If no E1 cables are used, a maximum of 48 network cables are allowed. If both network cables ａnd E1 cables are used, plan the cables according to the actual situation. (For example, the space for five network cables can accommodate one 21 x E1 cable.)
華為TN11PDU01機房網絡服務器機柜專用配電單元,華為TN11PDU01,華為配電單元
在無網線的情況下，E1大出線量為210芯（即21-E1電纜為10PCS）；在無E1電纜的情況下，網線的 大出線量為48PCS；在E1電纜和網線同時存在的情況下，請根據實際情況進行規劃設計（參考：每5根網 線所占空間可以放置1根21E1電纜）。
• It is recommended that you install the board in the extension slots in the right-lowest part of the equipment to facilitate cable layout. 為方便線纜布放，建議單板安裝在設備右邊下面的擴展槽位。
• If 21 x E1 cables are used, you are advised to connect a maximum of three cables at each layer of the chassis to facilitate maintenance ａnd cable routing. 使用21路E1電纜時，為方便維護和走線，機盒單層建議接入≤3根電纜。
• If the number of electrical ports exceeds the specified threshold, the cabling tray may become unable to accommodate the cables, ａnd the cabinet door may fail to be closed. If the number of electrical ports at each layer of the subrack must exceed the threshold, contact Huawei engineers to customize a convex front door. 電口超過以上限制數量，走線架可能會容納不下，而且可能導致機柜門無法關閉。如果子架單層電口的數 量必須超出以上限制，請聯系華為工程師定制外凸的前門。
